Using Senso Gloves with SteamVR and portable Android-based HMD (Quest, Pico, Focus etc)
Overview
Same way as it can be performed with wired HMD like HTC Vive, most of standalone Android-based HMD also could be used.
For this, you'll need to do these things:
- Install ALVR software on the PC
- Install ALVR client apk on HMD
- Enable hand tracking on HMD
- Make sure they are both in the same WiFi network
- Launch everything
That's all !
As a working release of ALVR (open source software for casting video from SteamVR to HMD over WiFi) you can use version 20.7.1 or later, available here
Here is also wiki page for ALVR in case of additional information
Also you can download it directly from our site
Installing and tuning server part
Unpack zip file into some folder and run "ALVR Dashboard.exe"

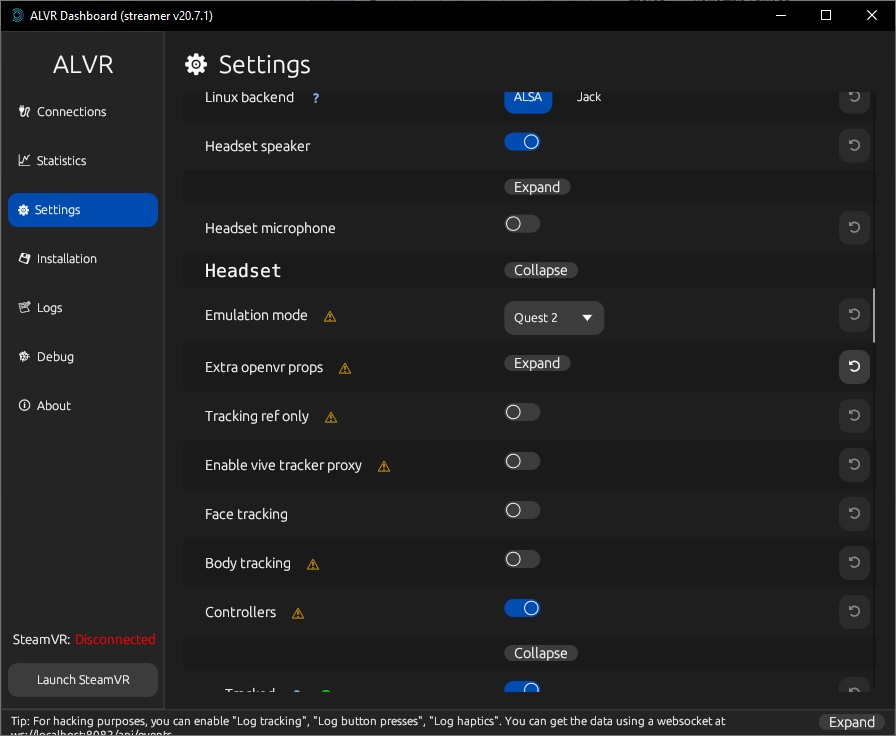

Confirm basic things (allow firewall rules etc) and come to main screen part Here are important things to do : Come to Setting ang scroll down Make sure there are Oculus2 mode

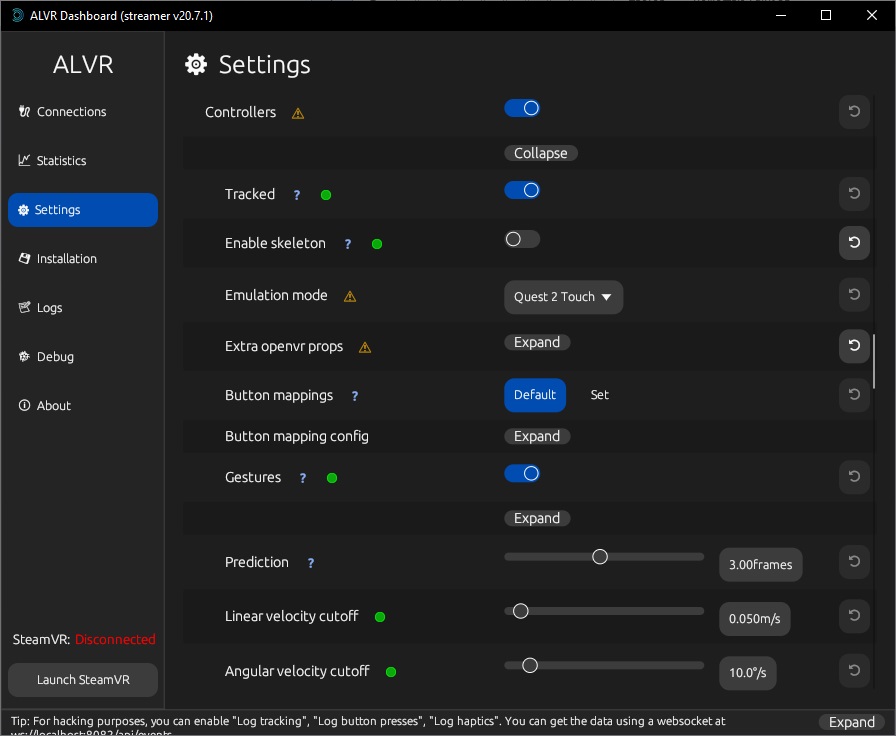

Switch off 'Enable skeleton'

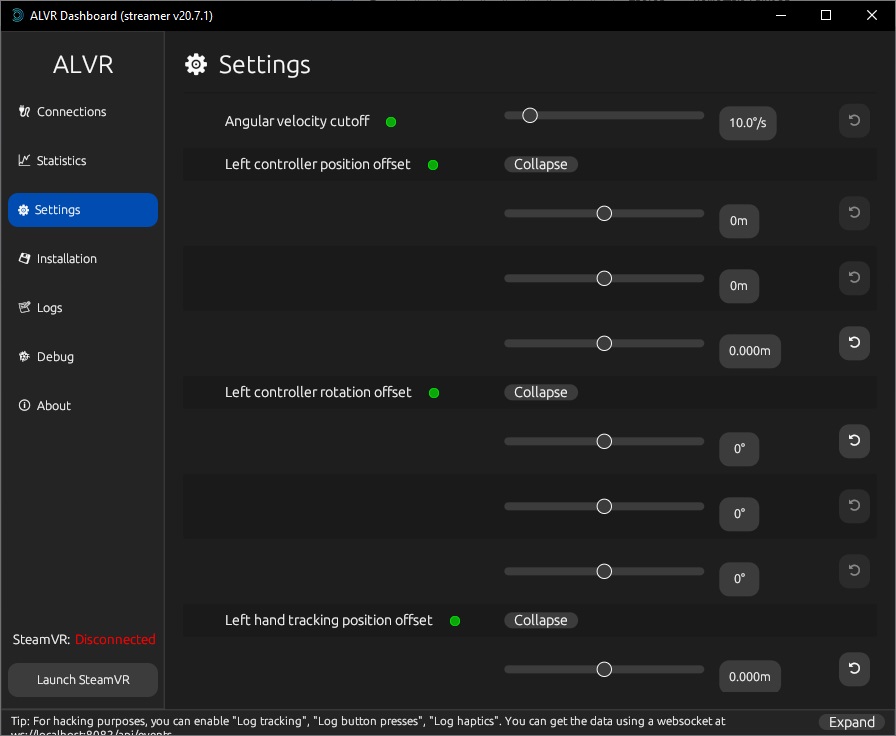

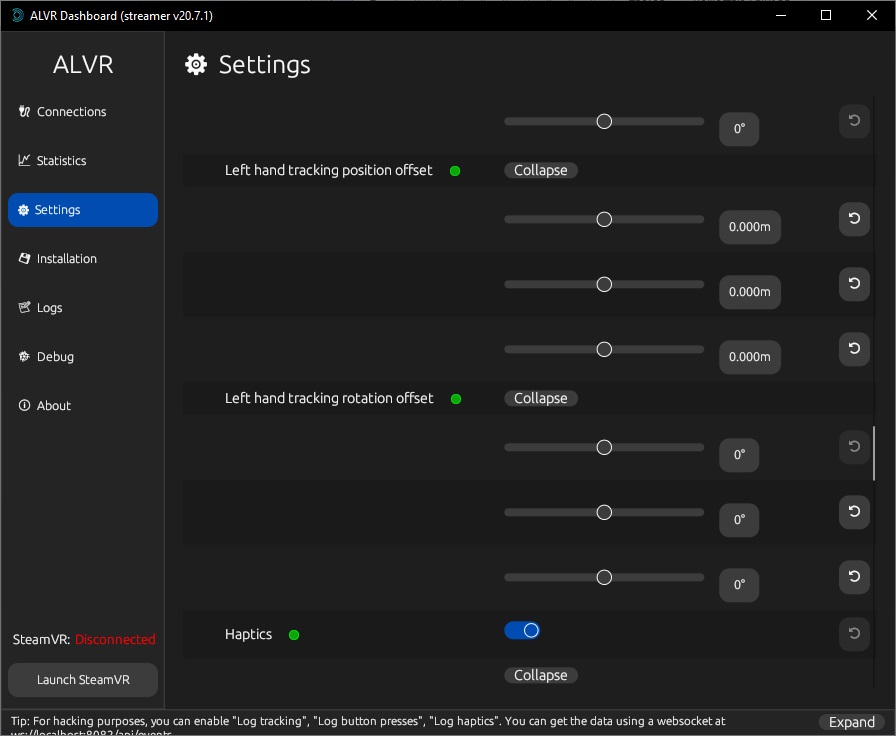

Then scroll down to controller offset and set every position offset and rotation offset for both Left/Right controller and hand tracking offsets to zero (0.0)
Installing client part
You can use any convenient way to install ALVR client APK to your HMD.
For example, ADB tool, or something else.
Detailed information could be found in Internet easily, for example there
Run

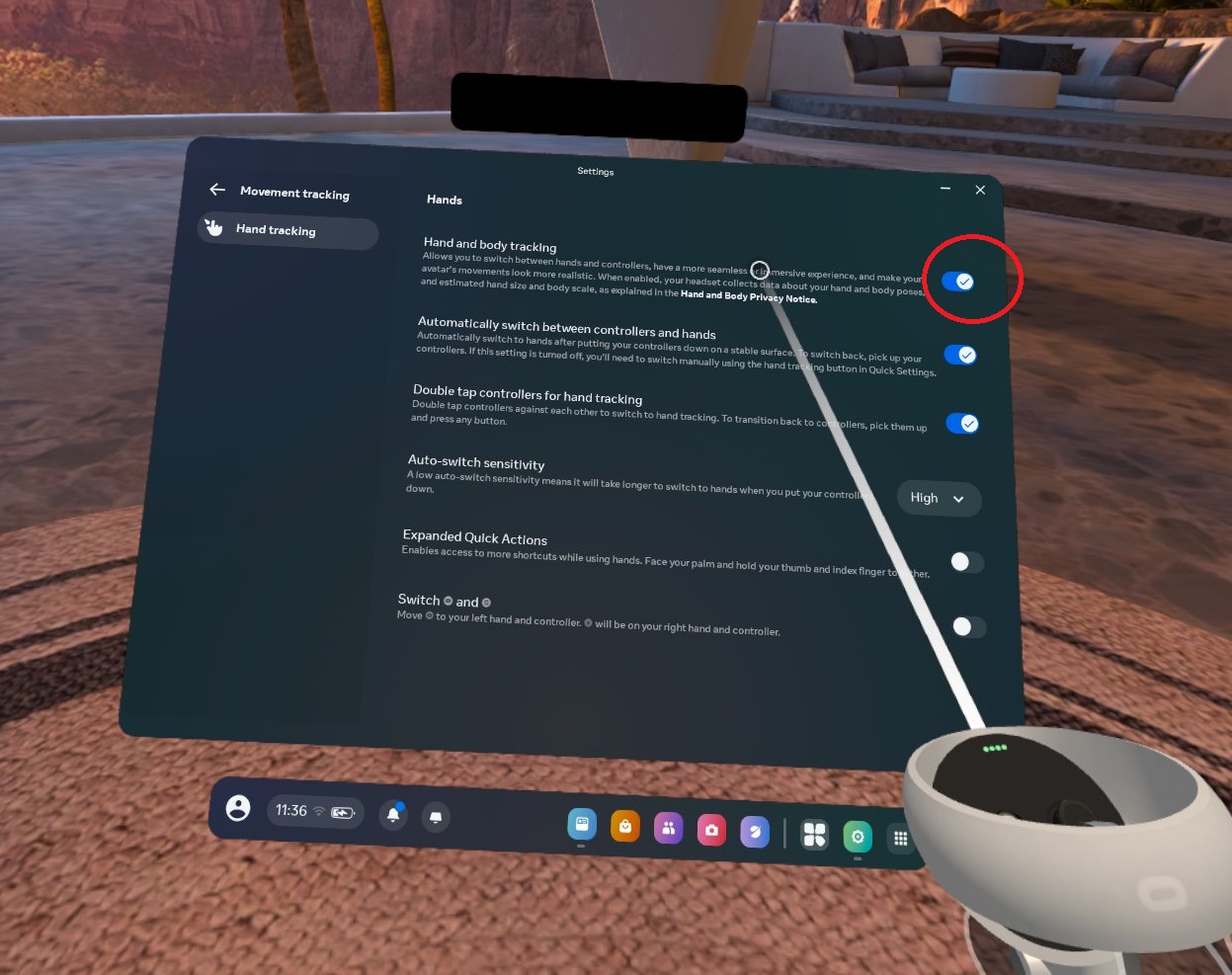

After all these actions launch ALVR on HMD (make sure you have Hand tracking ON in your HMD)

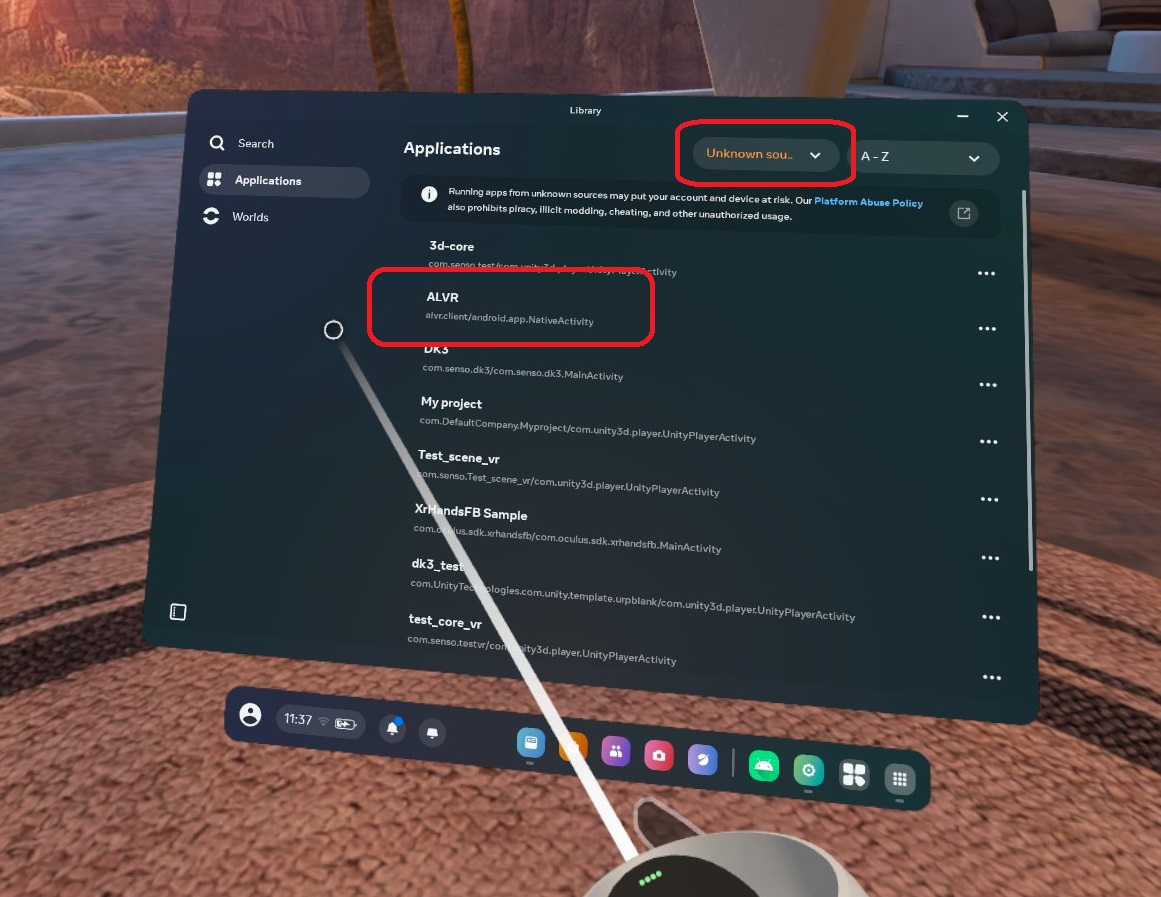

Then choose ALVR from 'unknown sources' and launch it

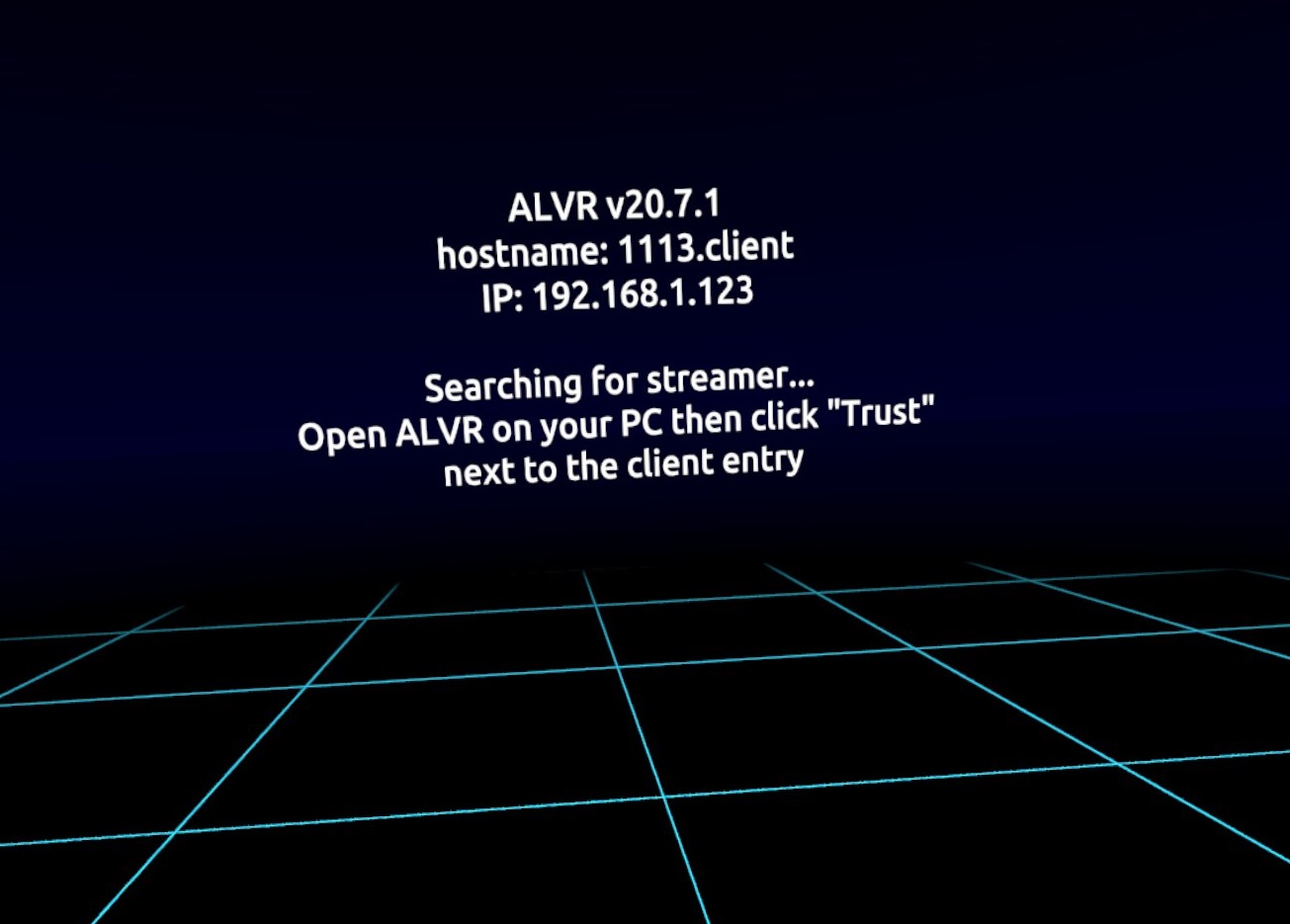

You'll see ALVR connection screen
Then take a look at server side
Click Launch SteamVR button located in left low corner of ALVR window

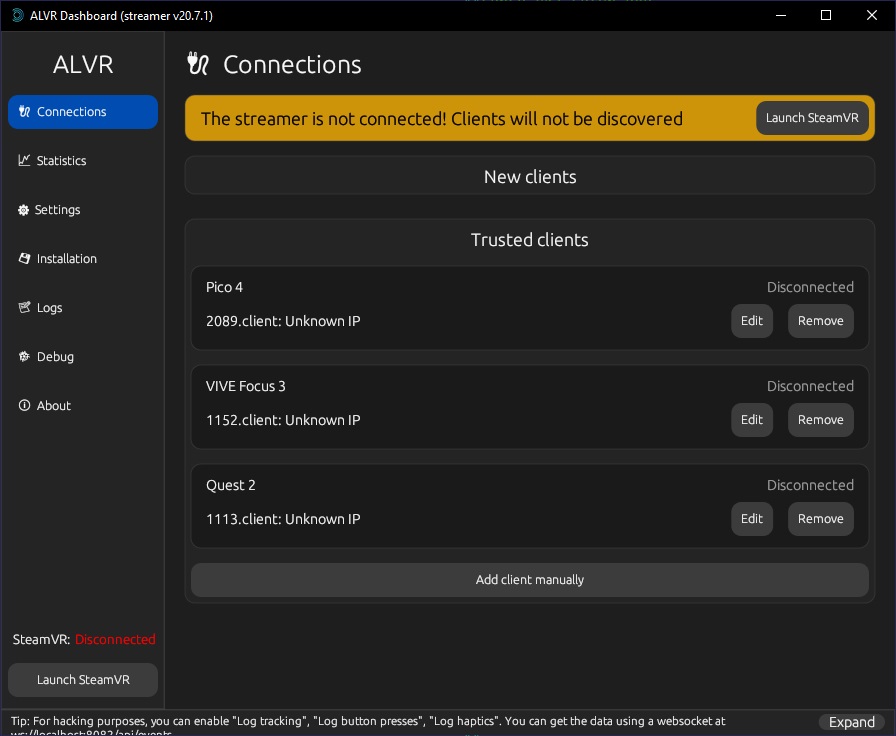

Then click trust to your ALVR client
That's it. Now you can launch any SteamVR game, or work with Unity or Unreal.
HMD hand tracking capabilities will be used along with VR gloves IMU data.
